How much does a tension fabric structure cost?

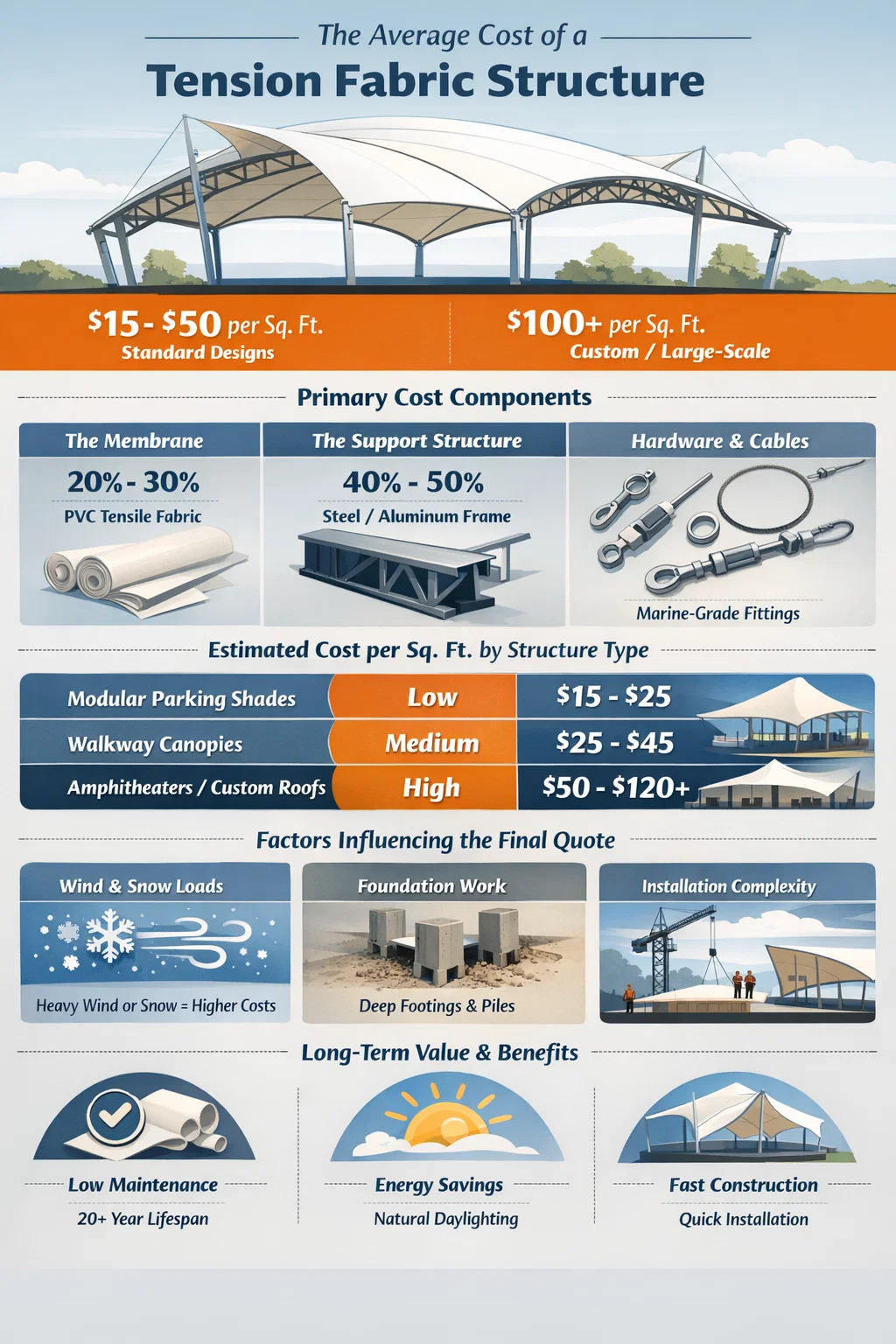

Direct Answer: What is the Average Cost of a Tension Fabric Structure?

The cost of a tension fabric structure typically ranges from $15 to $50 per square foot for standard designs, while highly customized or large-scale architectural projects can exceed $100 per square foot. This price is not just for the PVC tensile fabric itself; it encompasses a complete system including the engineered steel framework, specialized hardware, foundation work, and expert installation labor. Because these structures are custom-engineered to withstand specific wind and snow loads, pricing fluctuates based on geographic location and design complexity.

Primary Cost Components of the Membrane System

Understanding where your money goes requires breaking down the project into its physical parts. A tension structure is a synergy of flexible and rigid elements.

The Membrane: PVC Tensile Fabric

The fabric usually accounts for 20% to 30% of the total project cost. Standard PVC coated fabric is the most economical choice. The price varies depending on the weight (typically 700g/m² to 1500g/m²) and the top-coat finish. A PVDF-coated membrane costs more than a simple acrylic finish but offers significantly better self-cleaning properties and a longer lifespan, often reaching 20 years.

The Support Skeleton: Steel or Aluminum

The structural steel often represents the largest expense, frequently 40% to 50% of the budget. Unlike traditional buildings, tensile structures put immense horizontal loads on the frame. This requires high-grade steel and thick-walled pipes to prevent buckling under the tension of the membrane.

Hardware and Cables

Marine-grade stainless steel cables, turnbuckles, and specialized clamps are essential for distributing stress. These small but high-precision components ensure the PVC tensile fabric remains taut and safe.

Price Breakdown by Structure Type

Different applications require different engineering intensities. The following table provides an estimated price range for common installations using PVC coated fabric.

Variables That Influence the Final Quote

No two tensile fabric structures are identical in price because the environment dictates the engineering.

Environmental Loads (Wind and Snow)

If you are building in a hurricane-prone coastal area or a region with heavy winter snow, the PVC tensile fabric must be thicker and the steel foundations significantly deeper. For instance, a structure designed for 120 mph winds requires much heavier gauge steel than one designed for 90 mph, potentially increasing costs by 20% or more.

Foundation Requirements

The upward "lift" created by a tensile structure acts like a giant wing. This requires substantial concrete footings to keep the structure anchored. If the soil is sandy or unstable, the cost of deep piers or piling can add thousands to the initial excavation budget.

Accessibility and Installation Height

Labor usually accounts for 15% to 25% of the total cost. If the structure is being installed over an existing building or at a high elevation, the need for specialized cranes and rope-access technicians will drive the labor price upward.

The Long-Term Value and ROI

While the upfront cost might seem higher than a simple wood or shingle structure, PVC tensile fabric provides long-term financial benefits that often justify the investment.

• Low Maintenance: High-quality PVC coated fabric with a PVDF top-coat requires only occasional rinsing, saving thousands in painting or shingle replacement over 20 years.
• Energy Savings: The translucency of the membrane allows for natural daylighting, reducing the need for artificial lighting during the day.
• Speed of Construction: These structures are often installed in weeks rather than months, reducing the cost of site disruption and temporary closures.

Tips for Managing Your Budget

To keep your tension fabric structure cost under control, consider these strategies:

• Choose modular designs whenever possible to reduce custom engineering fees.
• Invest in high-quality top-coats early to avoid the massive expense of replacing a degraded membrane 10 years prematurely.
• Ensure a thorough geotechnical report is completed before quoting to prevent "surprise" foundation costs during excavation.
